40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant

4 CWDM lanes MUX/DEMUX design QSFP+ Transceiver

10km 40G QSFP+ LR4

Compliant with 40G Ethernet IEEE802.3ba Fiber Optic Transceiver

Luogo di origine:

Guangdong, Cina

Marca:

HILINK

Certificazione:

CE FCC Rohs

Numero di modello:

HL-QSFP-40G-LR4

Contattaci
Chiedi un preventivo
Dettagli del prodotto
Nome dei prodotti:
40GQSFP+10Km
Connetor:
Duplex lc
Velocità dati:
40g
Distanza:
10 km
Intervallo di temperatura:
0°C ~ +70°C
Certificazione:
RoHS Compliant
Tipo:
Transocivisti in fibra ottica, 40G QSFP+
Funzioni diagnostiche digitali:
Incorporato
Termini di pagamento e di spedizione
Quantità di ordine minimo
1pcs
Prezzo
EXW: 1084~1176USD/PCS
Imballaggi particolari
La borsa statica, il piano di plastica, scatola al minuto, da richiede
Tempi di consegna
5-8workingdays
Termini di pagamento
Western Union, T/T, L/C
Capacità di alimentazione
100 pezzi/mese
Descrizione del prodotto
40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant
Product Description

The HL-QSFP-40G-LR4 is a high-performance transceiver module designed for 10km optical communication applications. Compliant with 40GBASE-LR4 of the IEEE P802.3ba standard, this module converts 4 input channels of 10Gb/s electrical data to 4 CWDM optical signals, multiplexing them into a single channel for 40Gb/s optical transmission. On the receiver side, it optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4 channel output electrical data.

Key Features
  • 4 CWDM lanes MUX/DEMUX design
  • Up to 11.2Gbps per channel bandwidth
  • Aggregate bandwidth of > 40Gbps
  • Duplex LC connector
  • Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
  • QSFP MSA compliant
  • Up to 10km transmission
  • Compliant with QDR/DDR Infiniband data rates
  • Single +3.3V power supply operating
  • Built-in digital diagnostic functions
  • Operating temperature range: 0°C to 70°C
  • RoHS Compliant
Applications
  • Rack to rack connections
  • Data center switches and routers
  • Metro networks
  • 40G BASE-LR4 Ethernet links
Product Images

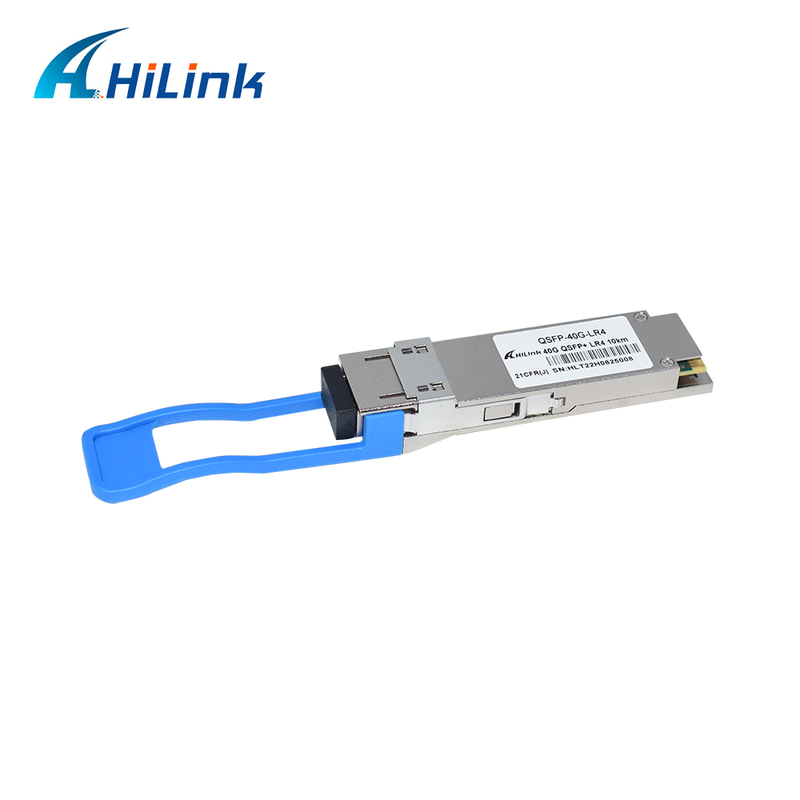

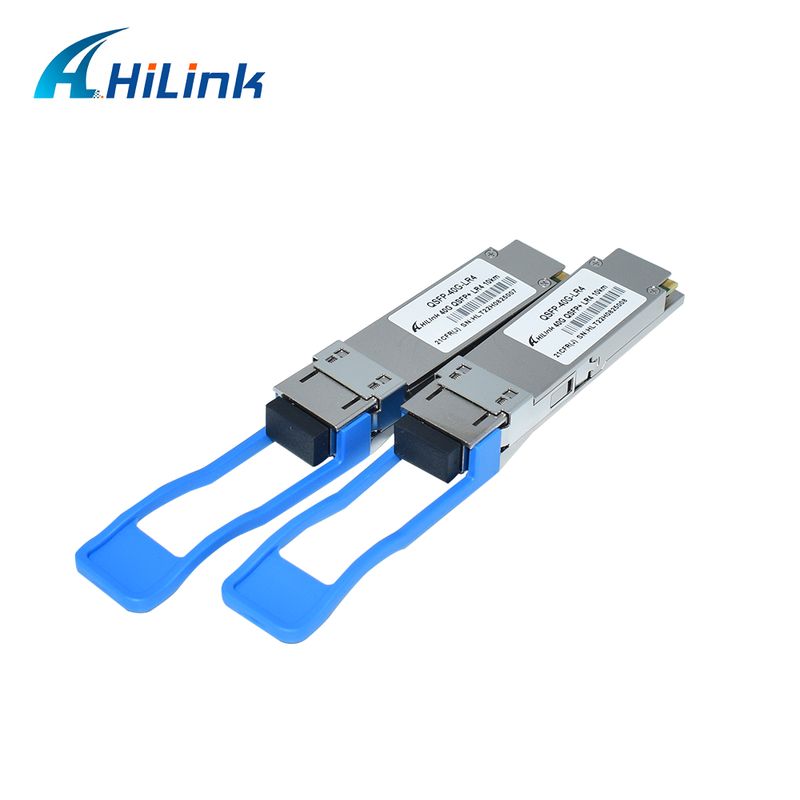

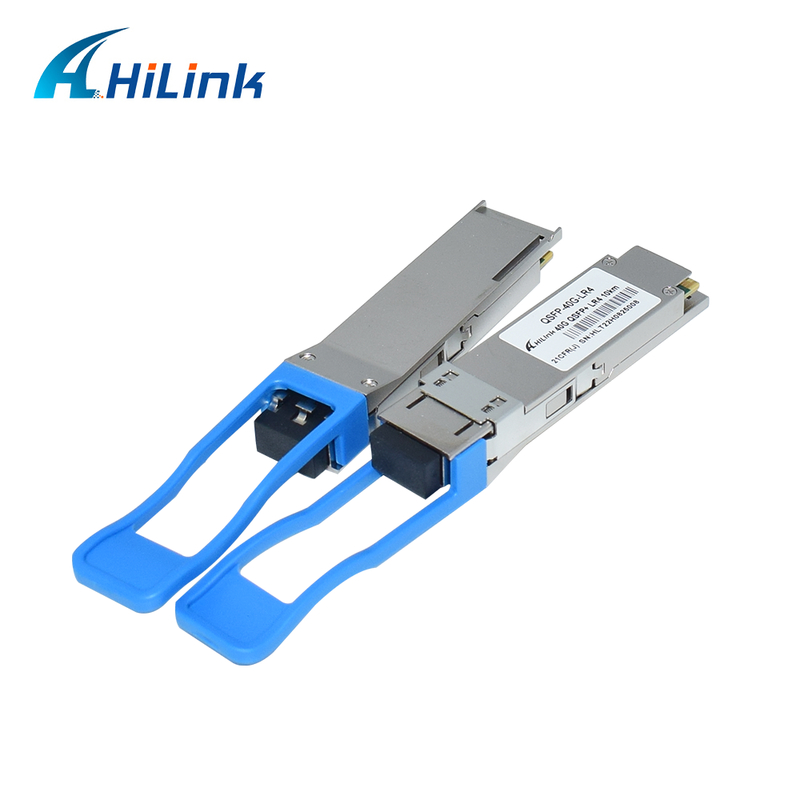

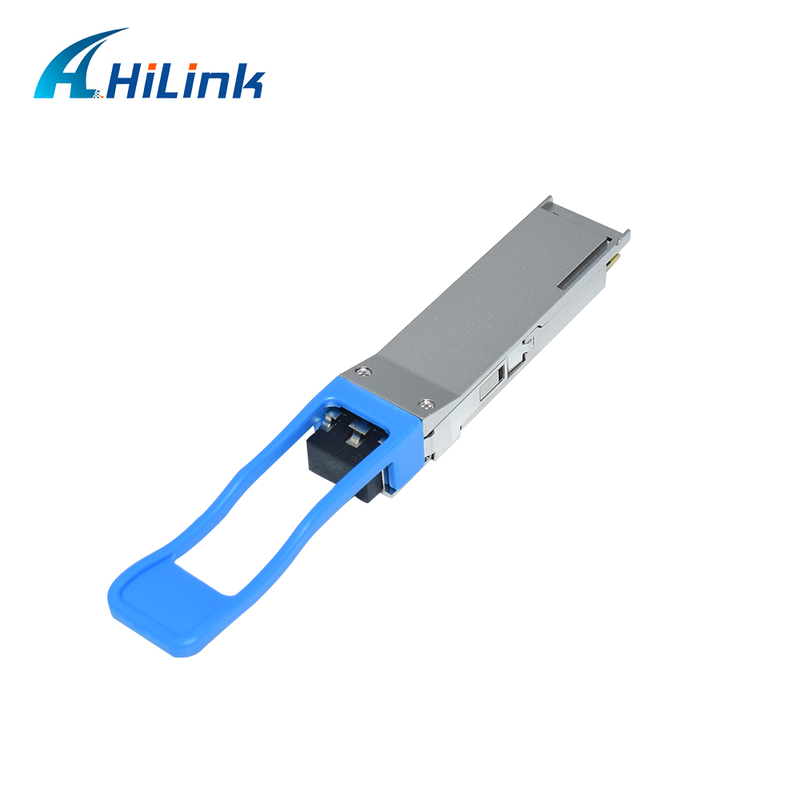

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 0 40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 1 40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 2
Our Services

OEM and ODM: Custom OEM/ODM orders are available for this product.

Quality Guarantee

All advertised optical transceivers are brand new with new components and never use old or refurbished materials. Each unit undergoes functional testing and aging tests. We provide a 3-year warranty from the date of shipment.

Product Range

We supply a comprehensive range of compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules compatible with most major brands.

Packaging & Shipping

We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 3-7 days.

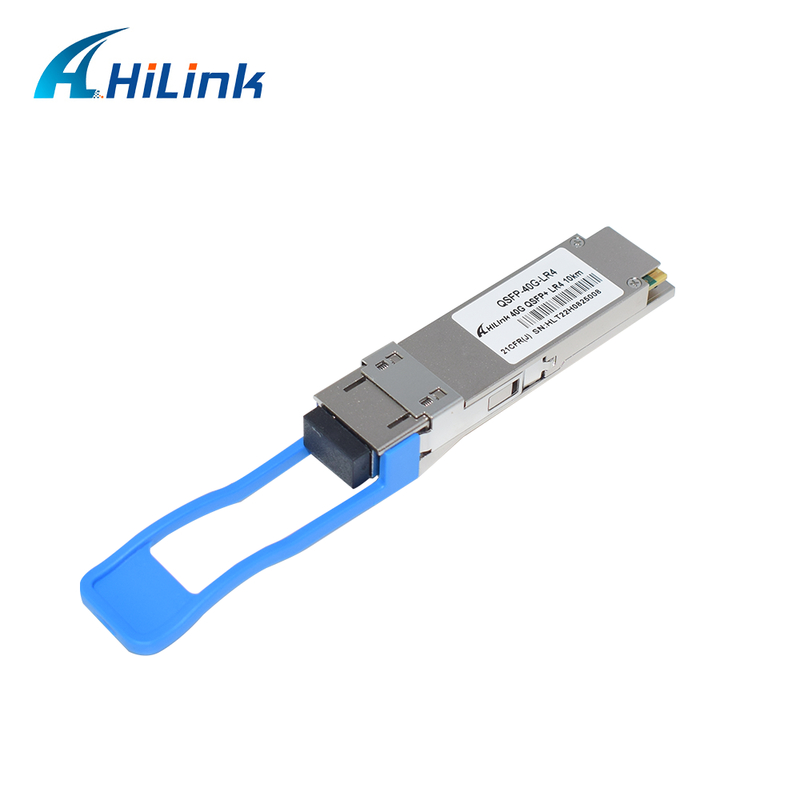

40Gb/s 10km QSFP+ LR4 Transceiver Hot Pluggable Duplex LC DDM RoHS Compliant 3
