Name: 10Gb/s XFP Bi-Directional Transceiver with 20km Reach and DDM Function for 10G Ethernet Applications
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-XFP-10G-BXU/D20
Price: 38.00 USD
Availability: InStock

Casa. > prodotti > transceiver XFP >

10Gb/s XFP Bi-Directional Transceiver with 20km Reach and DDM Function for 10G Ethernet Applications

Luogo di origine:

Cina

Marca:

HILINK

Certificazione:

CE FCC Rohs

Numero di modello:

HL-XFP-10G-BXU/D20

Contattaci

Chiedi un preventivo

10Gb/s XFP Bi-Directional Transceiver with 20km Reach and DDM Function for 10G Ethernet Applications

Dettagli del prodotto

Nome del prodotto:

XFP+ 10G BIDI 20KM

Velocità dati:

10 g

Lunghezza d'onda:

1270/1330 nm

Distanza:

20 km

Connettore:

Garanzia:

3 anni

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Prezzo

36~40USD

Imballaggi particolari

Borsa statica, piatta in plastica, scatola al dettaglio, a richiesta

Termini di pagamento

T/T, Western Union, MoneyGram, PayPal

Capacità di alimentazione

2000pcs/mese

Prodotti correlati

10Gb/s XFP Bi-Directional Transceiver with 40km Reach and DDM Function for High-Speed Data Transmission

Ottenga il migliore prezzo

video

Singola sensibilità ottica del ricevitore di Gigabit Ethernet -14dBm del ricetrasmettitore del modulo di XFP

Ottenga il migliore prezzo

video

Modulo del ricetrasmettitore di singolo modo XFP

Ottenga il migliore prezzo

video

Progetto compatibile DDM del ricetrasmettitore CATV del modulo ginepro/di Huawei XFP 10G LR FC

Ottenga il migliore prezzo

Contattaci

Contatta ora

Descrizione del prodotto

10Gb/s XFP Bi-Directional Transceiver 20km Reach 1270/1330nm TX / 1330/1270 nm RX Simplex LC DDM Function RoHS Compliant

Product Overview

10Gb/s XFP Bi-Directional Transceiver with 20km reach featuring 1270/1330nm TX and 1330/1270 nm RX wavelengths, Simplex LC connector, DDM function, and RoHS compliance.

Key Features

Supports 9.95 to 11.3Gb/s bit rates
Simplex LC Connector
Hot-pluggable XFP footprint
Uncooled 1270nm DFB transmitter, 1330nm PIN photo-detector
Uncooled 1330nm DFB transmitter, 1270nm PIN photo-detector
Applicable for 20km SMF connection
Low power consumption < 1.8W
Digital Diagnostic Monitor Interface
XFP MSA package
Operating case temperature: Commercial: 0 to 70°C, Industrial: -40 to 80°C

Applications

10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other optical link applications

Technical Description

XFP+ 10G BIDI 20KM is compliant with IEEE803.3ae 10Gbase-Bx standard with transmission distance up to 20km on single-mode fiber. The transceiver module comprises a transmitter with a 1270 or 1330nm DFB laser transmitter, an integrated 1330 or 1270nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ for commercial temperature, -40 to 80°C for industrial temperature, offering optimum heat dissipation and excellent electromagnetic shielding for 10 GbE systems application.

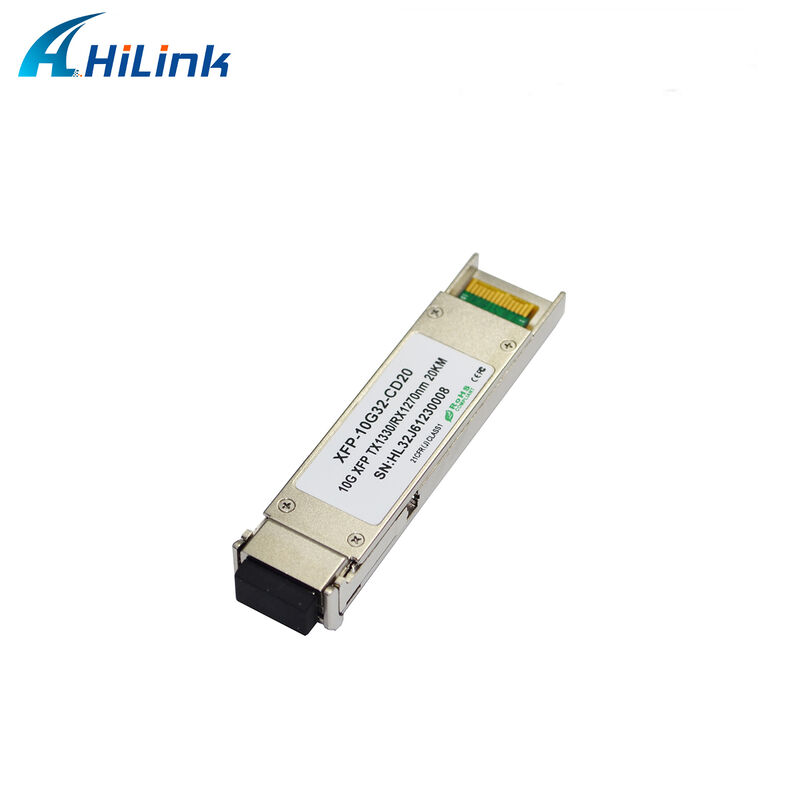

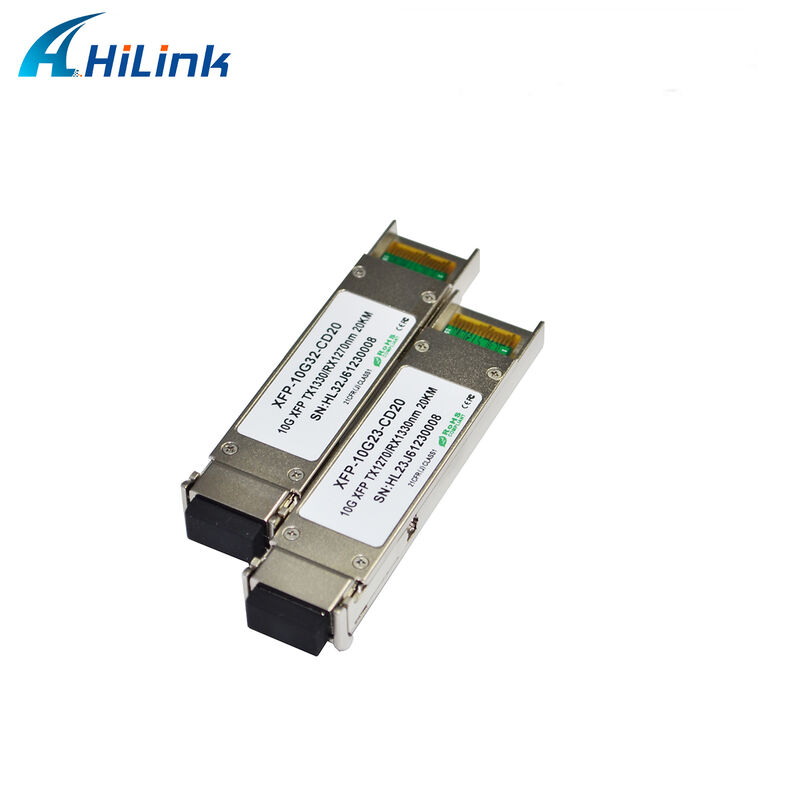

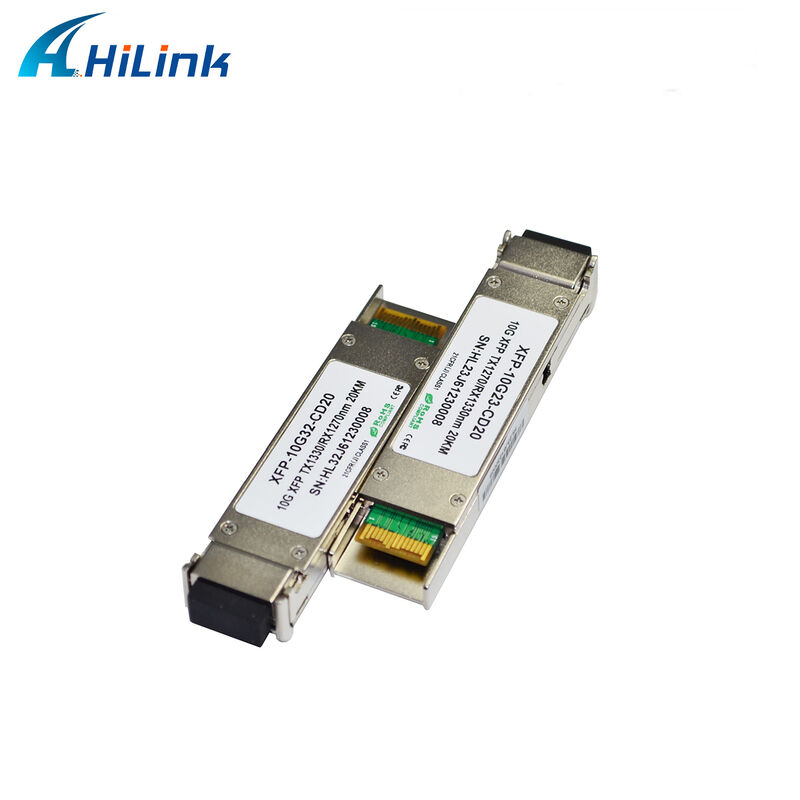

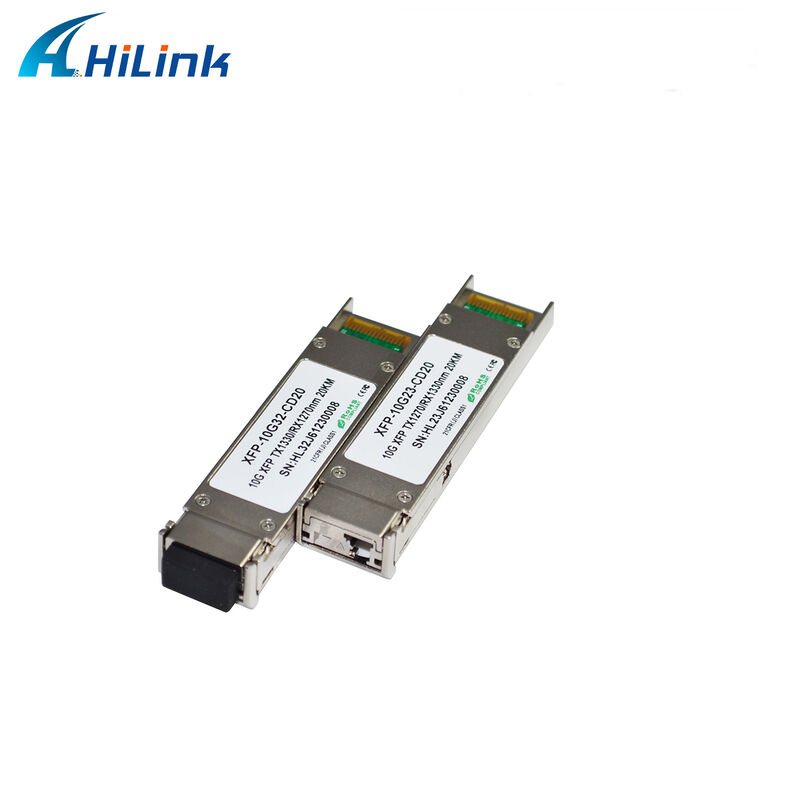

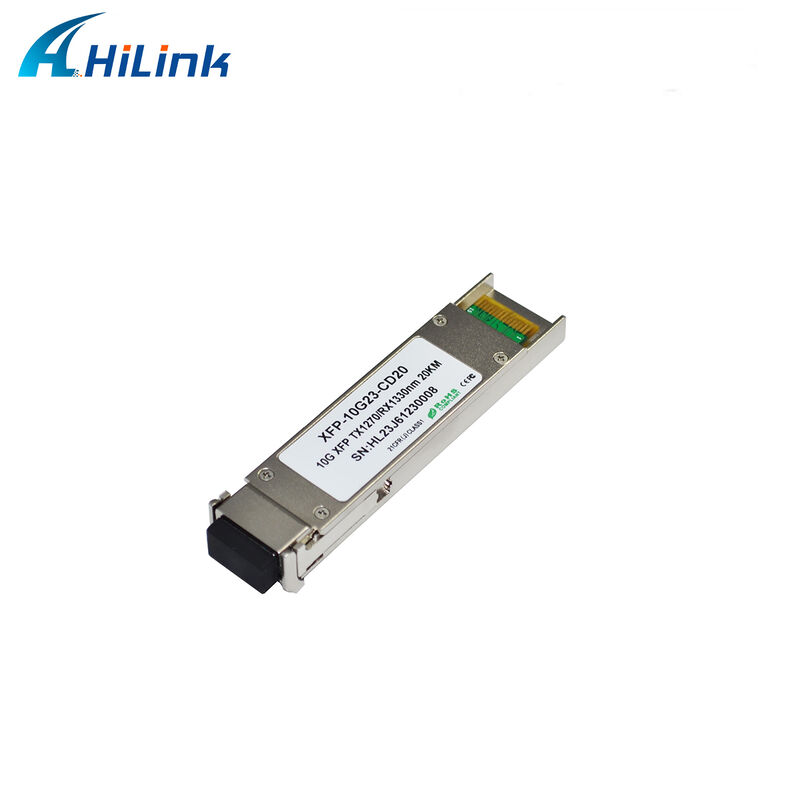

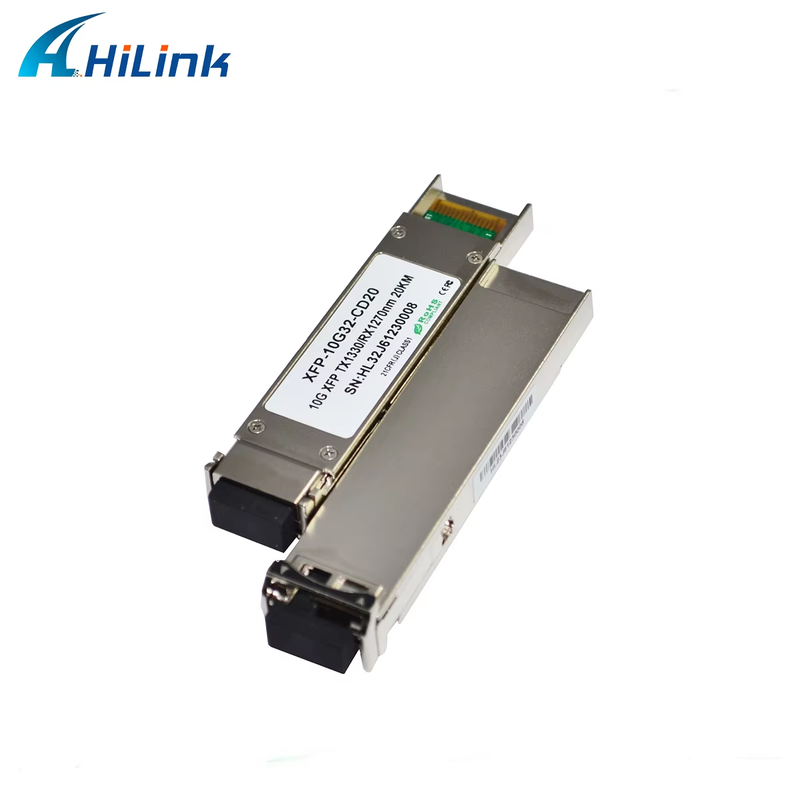

Product Image

Our Services

OEM and ODM Services

OEM/ODM orders are available to meet your specific requirements.

Quality Guarantee

We promise all advertised optical transceivers are brand new with new components and parts, absolutely never using old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide 3-year warranty for all optical transceivers from the date of shipment.

Product Range

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules. Our products are compatible with Cisco, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei, and more.

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new; we never use second-hand components.

What payment terms do you accept?

T/T, PayPal, and Western Union are acceptable payment methods.

What shipping methods do you offer?

Our usual shipping methods include DHL, FedEx, TNT, UPS, EMS etc. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide 3-year warranty for all our products from the date of shipment.

What devices are your products compatible with?

Our products are compatible with Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, and more.

How to place an order?

1. Order details confirmed - please tell us the model and quantity you need.
2. Proforma Invoice confirmed - the order will be arranged upon receipt of your payment.
3. Confirm and ship the goods - tracking number will be sent to you promptly.
4. We will help track your goods until you receive them safely.
