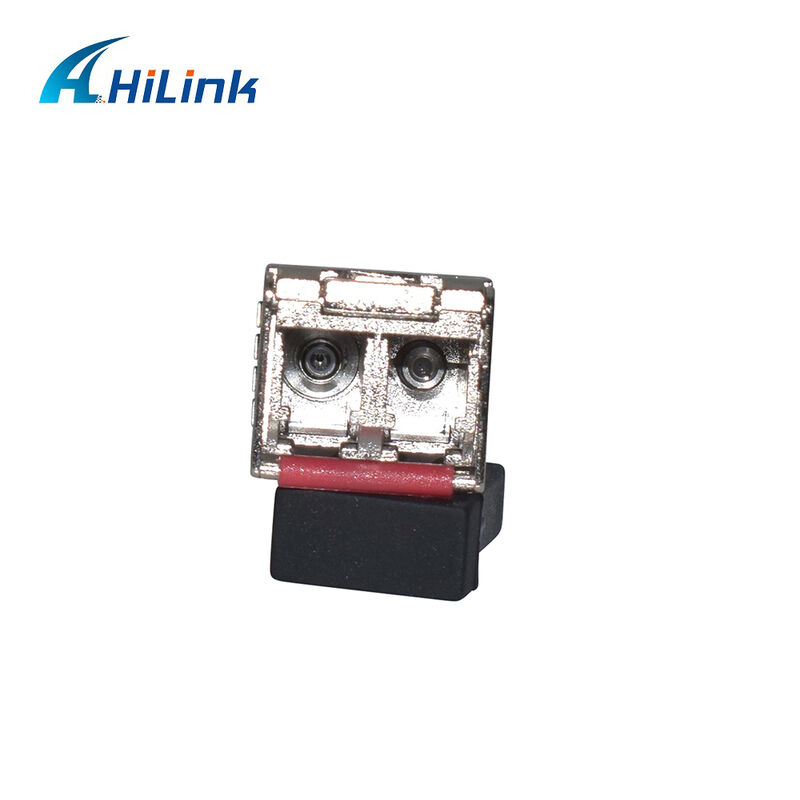

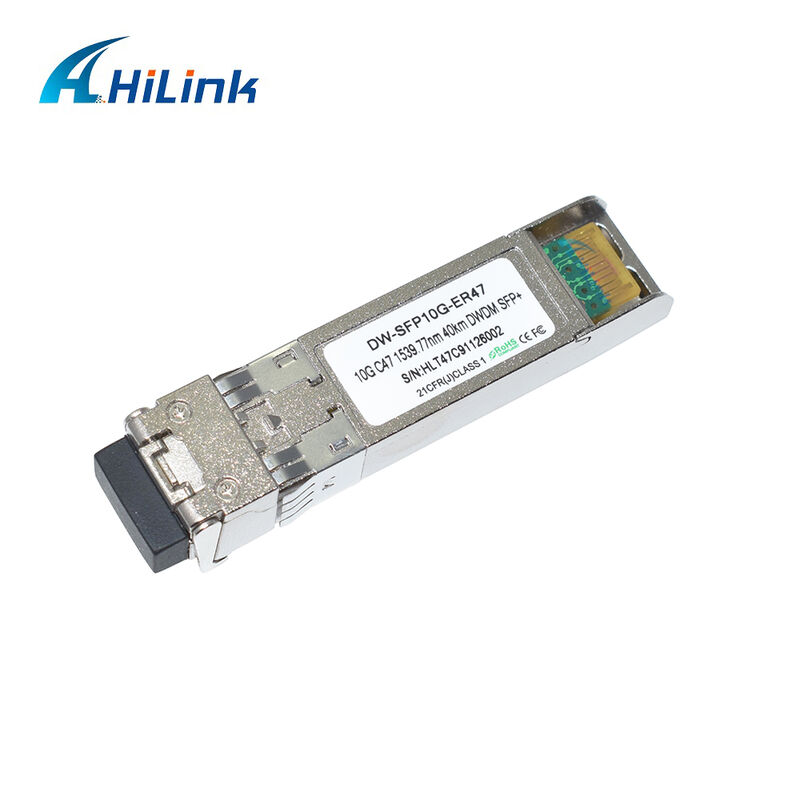

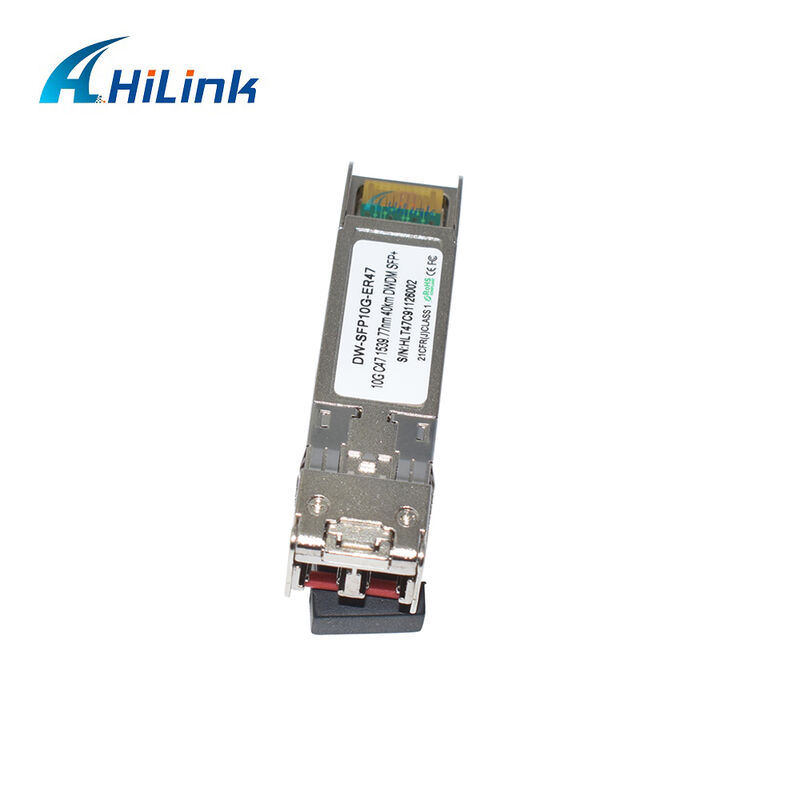

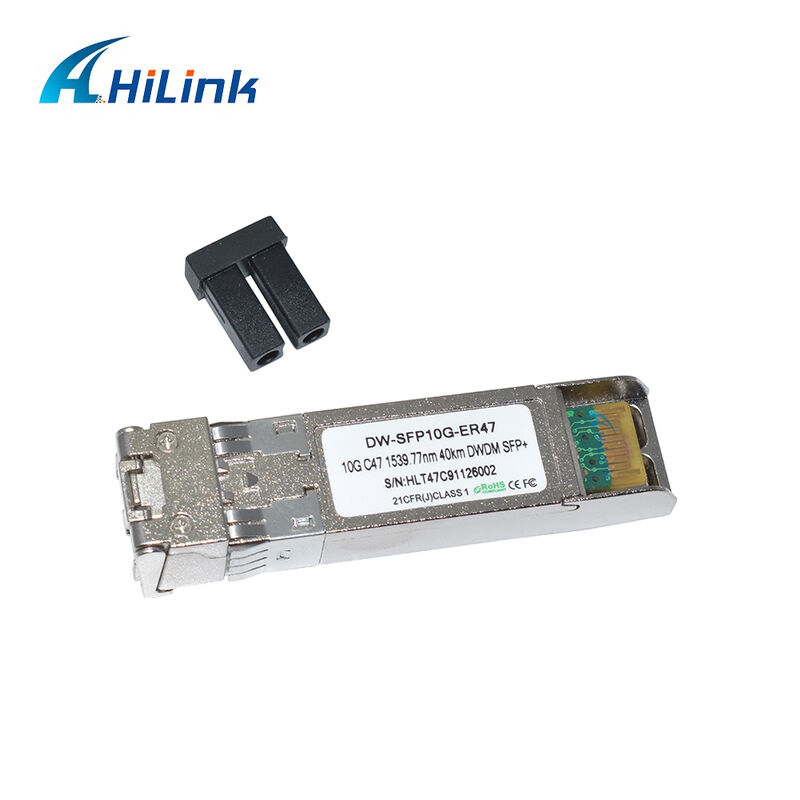

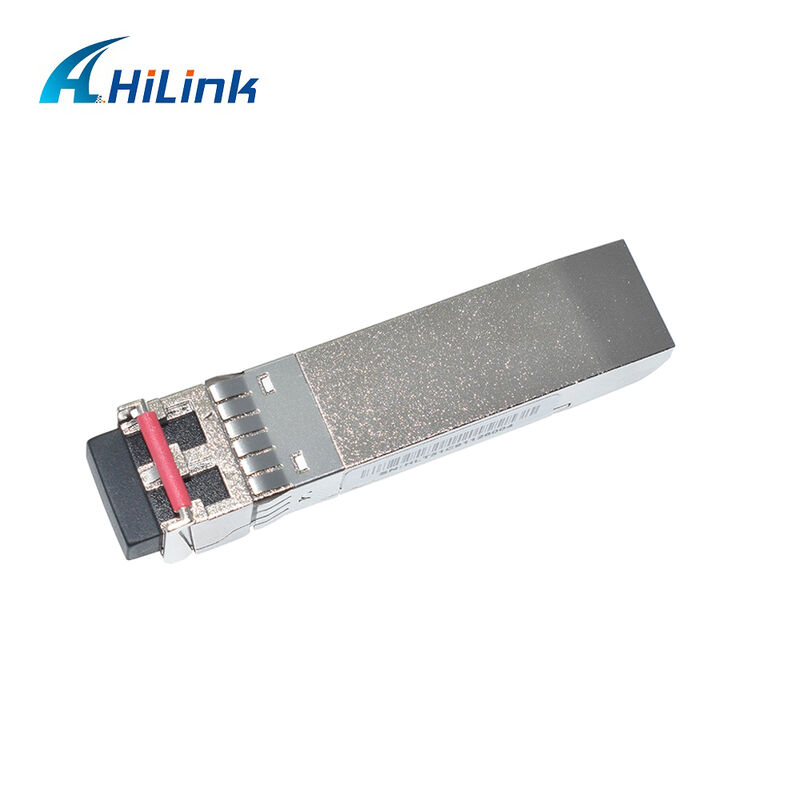

Name: 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-DWSFP10G-ER
Price: 130.00 USD
Availability: InStock

Casa. > prodotti > Modulo ottico del ricetrasmettitore >

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

40km Distance Optical Transceiver Module

100GHz Channel Spacing SFP+ Transceiver

CH17~61 Wavelength 10G DWDM SFP+

Luogo di origine:

Guangdong, Cina

Marca:

Hilink

Certificazione:

CE RoHs

Numero di modello:

HL-DWSFP10G-ER

Contattaci

Chiedi un preventivo

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

Dettagli del prodotto

Nome del prodotto:

10G DWDM SFP+ 40KM

Velocità dati:

10 g

Lunghezza d'onda:

CH17~61

Distanza:

40 km

Garanzia:

3 anni

Certificazione:

RoHS

Tempi di consegna:

3-7 giorni lavorativi

OEM:

supporto

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Prezzo

Negoziabile

Imballaggi particolari

Pacchetto normale o OEM

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C,T/T,Western Union

Prodotti correlati

10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature

Ottenga il migliore prezzo

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

Ottenga il migliore prezzo

Cavi a Nastro MTP/MPO Personalizzati Hilink

Ottenga il migliore prezzo

Cavi Patchcord MTP/MPO Personalizzati Hilink

Ottenga il migliore prezzo

Contattaci

Contatta ora

Descrizione del prodotto

10G SFP+ DWDM Optical Transceiver Module

HILINK's 10G DWDM SFP+ 40KM Enhanced Small Form Factor Pluggable transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single Mode fiber. These high-performance, cost-effective solutions are optimized for telecommunications applications and comply with SFF-8431, SFF-8432 and ITU-T G.698.1 standards.

Product Overview

This transceiver features a cooled EML laser in the transmitter section and a PIN photodiode integrated with TIA in the receiver section. All modules satisfy Class I laser safety requirements and include digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472, providing real-time access to operating parameters.

Key Features

Supports 9.95 to 11.3 Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled EML transmitter and PIN-TIA receiver
40km Single Mode Fiber connection capability
Low power consumption < 1.2W
100 GHz channel spacing
Digital Diagnostic Monitor Interface
Optical interface compliant to ITU-T 694.1 & G.698.1
Electrical interface compliant to SFF-8431 & SFF-8432
Operating case temperature options:
- Commercial: 0°C to 70°C
- Industrial: -5°C to 80°C

Applications

10G Ethernet
2x, 4x, 8x Fiber Channel
ITU-T G.698.1 compliant systems
Other optical link applications

Channel Selection Specifications

Channel	Frequency (THz)	Center Wavelength (nm)
17	191.7	1563.86
18	191.8	1563.05
19	191.9	1562.23
20	192.0	1561.42
21	192.1	1560.61
22	192.2	1559.79
23	192.3	1558.98
24	192.4	1558.17
25	192.5	1557.36
26	192.6	1556.55
27	192.7	1555.75
28	192.8	1554.94
29	192.9	1554.13
30	193.0	1553.33
31	193.1	1552.52
32	193.2	1551.72
33	193.3	1550.92
34	193.4	1550.12
35	193.5	1549.32
36	193.6	1548.51
37	193.7	1547.72
38	193.8	1546.92
39	193.9	1546.12
40	194.0	1545.32
41	194.1	1544.53
42	194.2	1543.73
43	194.3	1542.94
44	194.4	1542.14
45	194.5	1541.35
46	194.6	1540.56
47	194.7	1539.77
48	194.8	1538.98
49	194.9	1538.19
50	195.0	1537.40
51	195.1	1536.61
52	195.2	1535.82
53	195.3	1535.04
54	195.4	1534.25
55	195.5	1533.47
56	195.6	1532.68
57	195.7	1531.90
58	195.8	1531.12
59	195.9	1530.33
60	196.0	1529.55
61	196.1	1528.77

Available in channels 17 through 61 with 100 GHz spacing for flexible network deployment.
