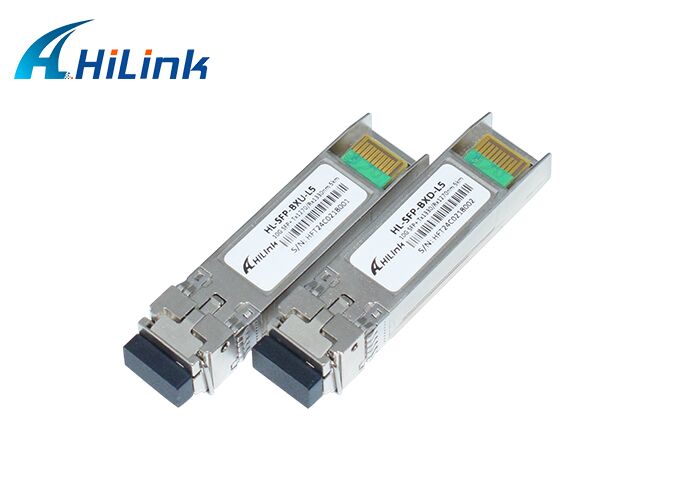

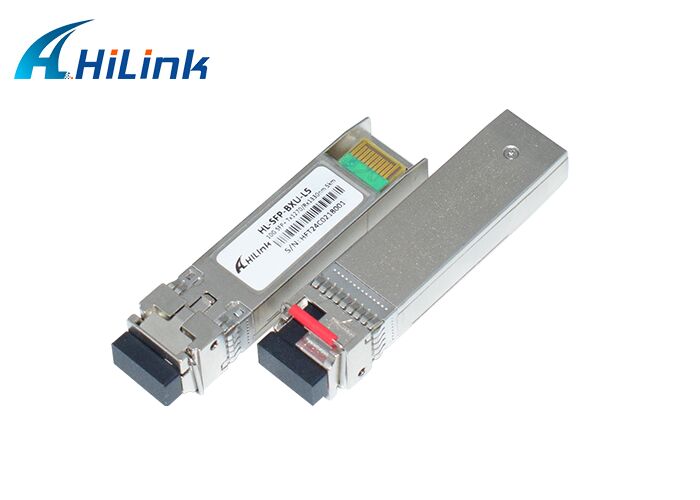

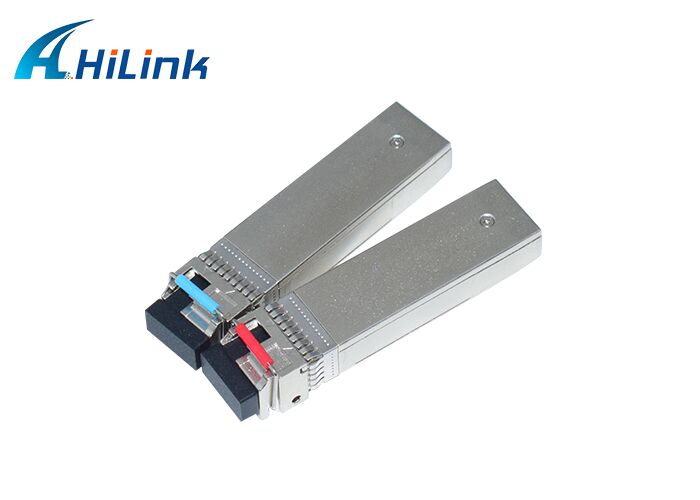

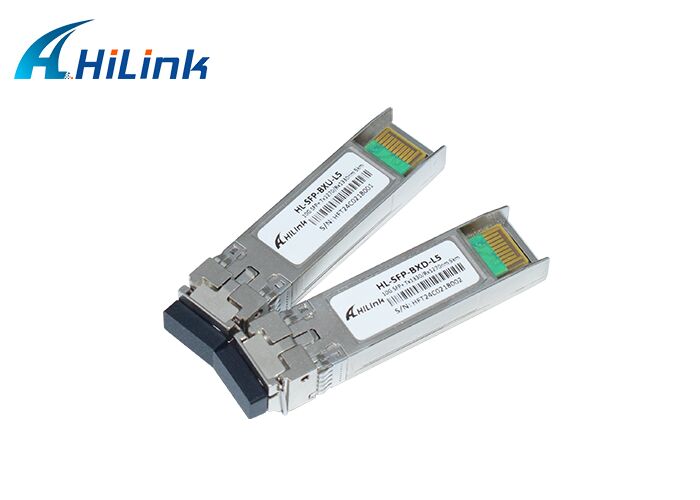

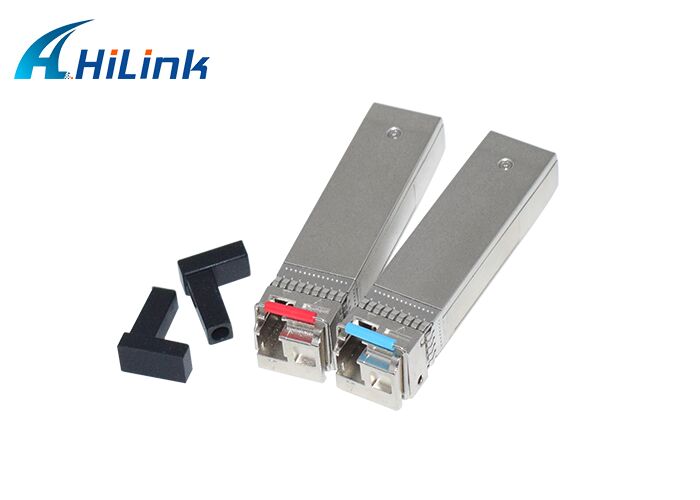

Name: SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP-BXU-L5/HL-SFP-BXD-L5
Price: 5.00 USD
Availability: InStock

Casa. > prodotti > Modulo ottico del ricetrasmettitore >

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Luogo di origine:

Marca:

HiLink or OEM

Certificazione:

CE FCC ROSH

Numero di modello:

HL-SFP-BXU-L5/HL-SFP-BXD-L5

Contattaci

Chiedi un preventivo

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Dettagli del prodotto

Nome del prodotto:

Ricetrasmettitore ottico SFP+ 10G BIDI 5KM

Velocità dei dati:

10 g

Trasmissione:

5 km

Tipo di connettore:

Lunghezza d'onda:

T1270/R1330

Compatibile:

Cisco, Juniper, Arista, Huawei, ecc

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 paio

Prezzo

US$5.00~US$6.00/pair

Imballaggi particolari

Pacchetto normale o OEM

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

T/T, PayPal, Western Union

Capacità di alimentazione

2000 coppie a settimana

Prodotti correlati

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Ottenga il migliore prezzo

Transceiver XFP Bi-Direzionale 10Gb/s 40km TX1270/1330nm RX1330/1270nm Conforme RoHS

Ottenga il migliore prezzo

Hilink 10G Data Rate SFP+ Transceiver con distanza 30M/80M e modulo in rame 10GBASE-T conforme alla RoHS

Ottenga il migliore prezzo

Trasmettitore SFP in rame Hilink HL-SFP-T 1000BASE-T e 10/100/1000BASE-T con connettore RJ-45

Ottenga il migliore prezzo

Contattaci

Contatta ora

Descrizione del prodotto

Description

The HL-SFP-BXU-L5/HL-SFP-BXD-L5 Transceiver is intended for 5km reach service from 0.6Gb/s to 10.3125Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a DML laser transmitter and PIN/TIA receiver. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Product features

l Operating data rate up to 10.3125Gbps

l Up to 5km transmission distance

l High sensitivity PIN photodiode and TIA

l 12dB Power Budget at Least

l LC single connector

l Hot pluggable 20pin connector

l Low power consumption <1.2 W

l Single +3.3V±5% power supply

l Compliant with SFF-8472&SFF-8431

l Fully RoHS Compliant

l Compliant with IEEE802.3ae 10GBASE-LR/LW

l Operating temperature range:

Commercial: 0°C to +70°C

Industrial: -40°C to +85°C

Application

l 10GBASE-LR at 10.31Gbps

l 10GBASE-LW at 9.95Gbps

l Other Optical Links

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 0

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 1

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission 2
