Name: 200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

Casa. > prodotti > Modulo ottico del ricetrasmettitore >

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Luogo di origine:

Cina

Marca:

HiLink or OEM

Certificazione:

CE FCC ROSH

Numero di modello:

HL-QSFP200G-LR8

Contattaci

Chiedi un preventivo

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Dettagli del prodotto

Nome del prodotto:

Ricetrasmettitore ottico 200G QSFP DD PSM8 10 km (MPO16)

Trasmissione:

10 km

Velocità dei dati:

200 g

Connettore:

MPO16

Lunghezze d'onda:

1310 nm

OEM:

Supporto

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pezzo

Prezzo

Negoziabile

Imballaggi particolari

Imballaggio normale o OEM

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

T/T, Western Union, Paypal

Capacità di alimentazione

2000pcs alla settimana

Prodotti correlati

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Ottenga il migliore prezzo

Transceiver XFP Bi-Direzionale 10Gb/s 40km TX1270/1330nm RX1330/1270nm Conforme RoHS

Ottenga il migliore prezzo

Hilink 10G Data Rate SFP+ Transceiver con distanza 30M/80M e modulo in rame 10GBASE-T conforme alla RoHS

Ottenga il migliore prezzo

Trasmettitore SFP in rame Hilink HL-SFP-T 1000BASE-T e 10/100/1000BASE-T con connettore RJ-45

Ottenga il migliore prezzo

Contattaci

Contatta ora

Descrizione del prodotto

Description

The Technologies HL-QSFP200G-LR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16 fiber MTP (MPO) connector. This module incorporates Hilink Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service. The 200G QSFP DD PSM8 is one kind of parallel transceiver. DFB and PIN array package is key technique, through I2C system can contact with module.

Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if requires
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16(APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

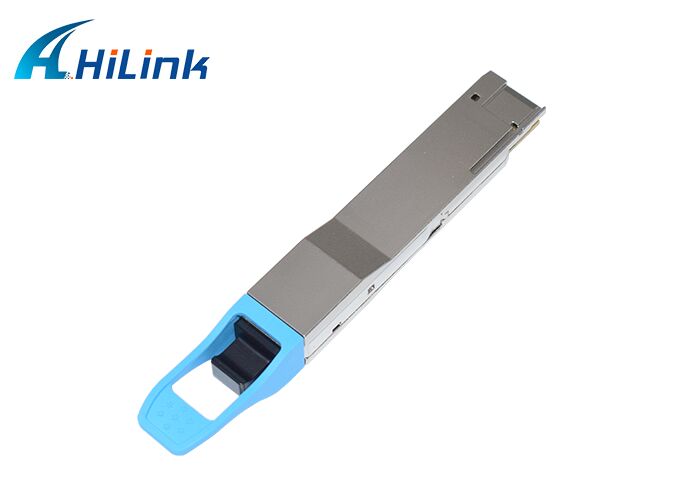

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 0

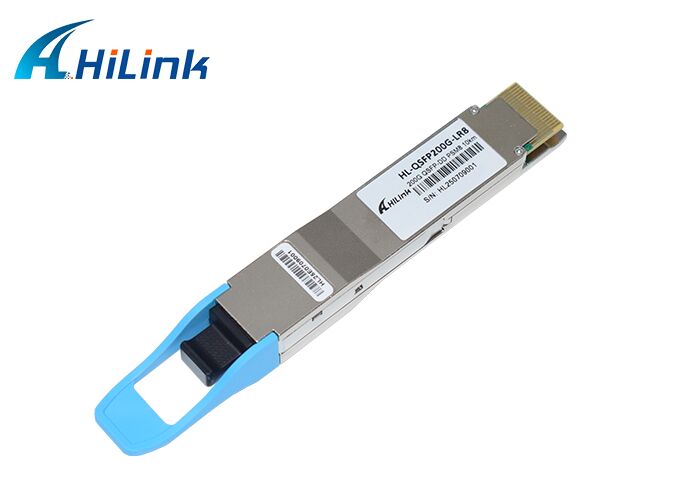

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 1

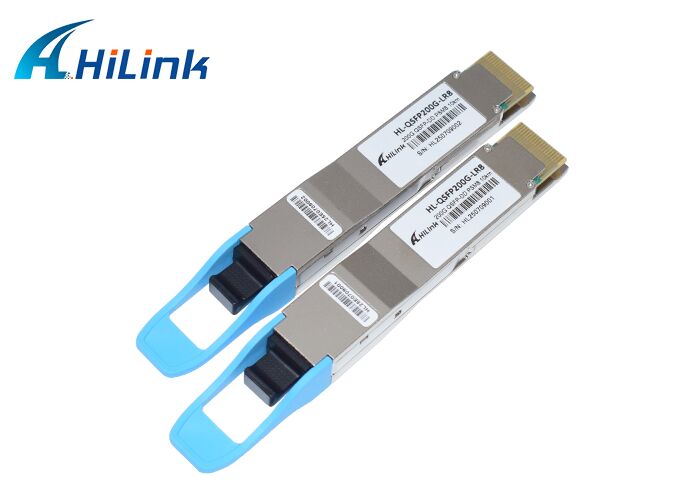

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 2
