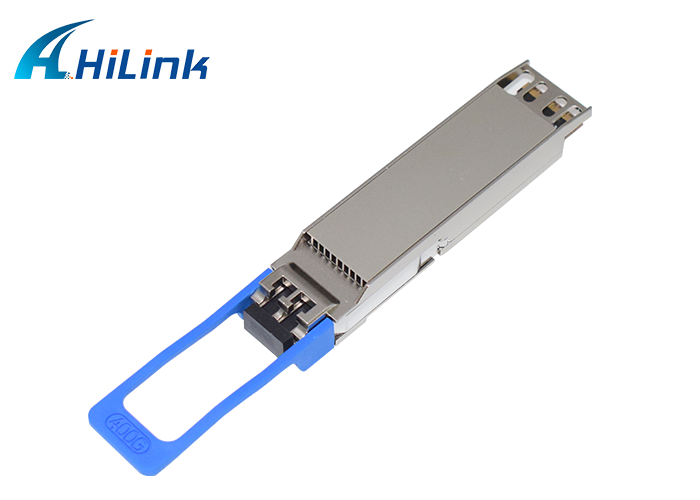

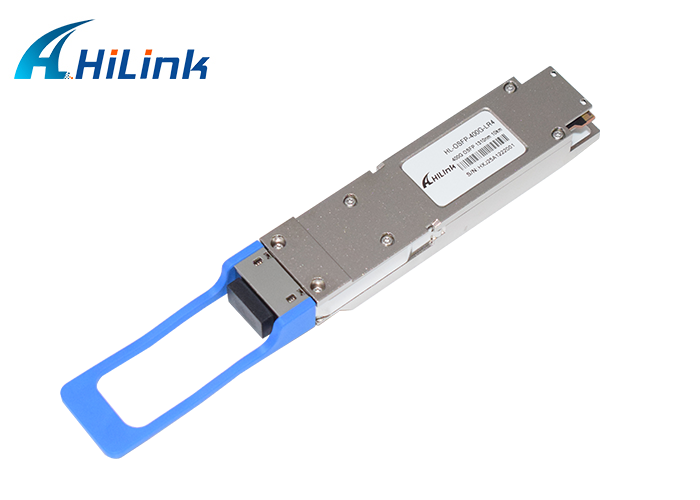

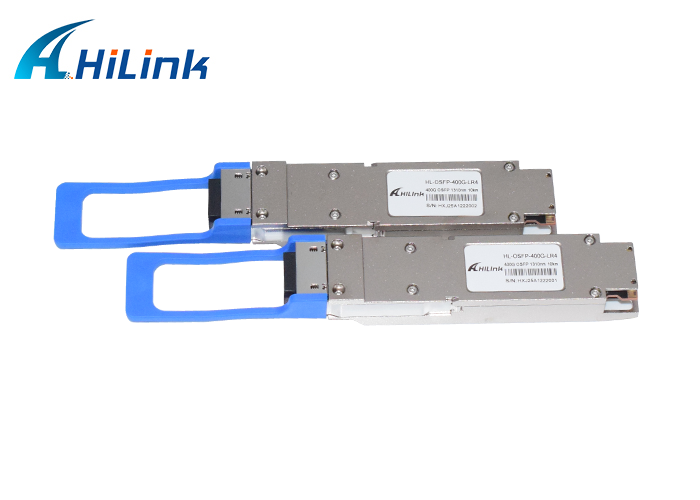

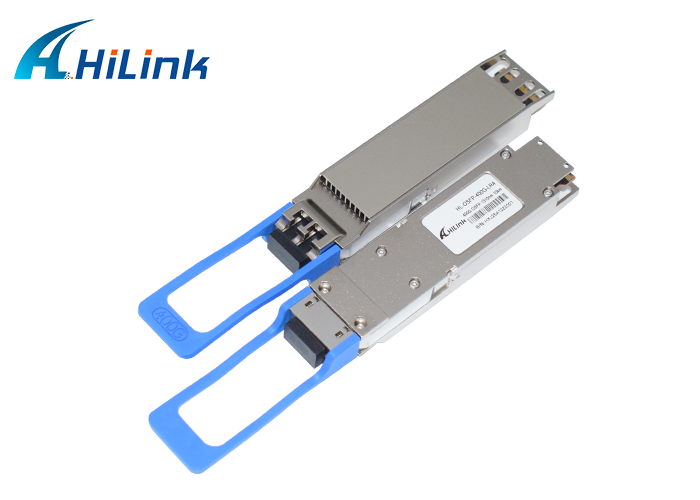

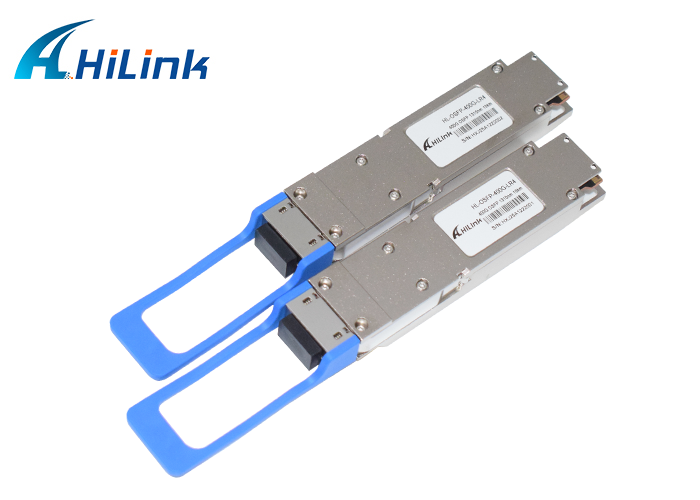

Name: OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-OSFP-400G-LR4
Price: 130.00 USD
Availability: InStock

Casa. > prodotti > Modulo ottico del ricetrasmettitore >

OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers

Luogo di origine:

Cina

Marca:

HiLink or OEM

Certificazione:

CE FCC ROSH

Numero di modello:

HL-OSFP-400G-LR4

Contattaci

Chiedi un preventivo

OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers

Dettagli del prodotto

Lunghezza d'onda:

1310 nm

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pezzo

Prezzo

Negoziabile

Imballaggi particolari

Pacchetto normale o OEM

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

T/T, Western Union, Paypal

Capacità di alimentazione

2000pcs alla settimana

Prodotti correlati

25G SFP28 BIDI 10km/20km/40km/50km/60km Optic Module

Ottenga il migliore prezzo

OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers

Ottenga il migliore prezzo

video

Modulo 25G SFP28 BIDI 50 km 1270/1310nm

Ottenga il migliore prezzo

video

Transceiver ottico QSFP28 100G BIDI ZR4 con trasmissione 80KM e connettore LC

Ottenga il migliore prezzo

Contattaci

Contatta ora

Descrizione del prodotto

OSFP 400G LR4 1310nm 10KM Optical Transceiver

Product Overview

Hilink's OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module features 8 independent electrical input/output channels operating up to 53.125Gbps per channel.

The integrated GearBox converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s.

Technical Specifications

Supports 425Gbps data rate
Single 3.3V Power Supply
Up to 10km transmission over Single Mode Fiber with KP4 FEC
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface
PIN and TIA array on the receiver side
Power dissipation < 8W
Case temperature range: 0°C to 70°C (commercial)

Applications

400G Ethernet networks
400G-LR4 applications
Data center infrastructure
InfiniBand systems

Technical Details

The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The transmitter path incorporates a bi-directional PAM4 re-timer ASIC integrated with a 4-channel modulator driver, 4 externally modulated lasers, and one optical multiplexer.

On the receiver path, an optical de-multiplexer is coupled to 4 photodiodes, along with the PAM4 re-timer that includes a built-in 4-channel TIA array. The electrical interface is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs and OSFP MSA standards.
