Name: Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

Casa. > prodotti > Modulo ottico del ricetrasmettitore >

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Luogo di origine:

Guangdong, Cina

Marca:

Hilink

Certificazione:

CE RoHs

Numero di modello:

HL-QSFP200G-LR8

Contattaci

Chiedi un preventivo

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver with 10km Distance and Hot Pluggable Design

Dettagli del prodotto

Nome del prodotto:

QSFP200G-LR8

Velocità dati:

200 g

Distanza:

10 km

Garanzia:

3 anni

Certificazione:

RoHS

Tempi di consegna:

3-7 giorni lavorativi

OEM:

Supporto

Termini di pagamento e di spedizione

Quantità di ordine minimo

1 pz

Prezzo

Negoziabile

Imballaggi particolari

Pacchetto normale o OEM

Tempi di consegna

5-8 giorni lavorativi

Termini di pagamento

L/C,T/T,Western Union

Prodotti correlati

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Ottenga il migliore prezzo

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring

Ottenga il migliore prezzo

video

QDD-400G-SR8 400G MMF 850nm QSFP-DD PAM4 100m DOM MTP/MPO-16 Trasmettitore ottico

Ottenga il migliore prezzo

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Trasmettitore

Ottenga il migliore prezzo

Contattaci

Contatta ora

Descrizione del prodotto

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 10km Optical Transceiver (MPO16)

Feel free to contact us for details, compatibility, customization and wholesale pricing.

The HL-QSFP200G-LR8 is an eight-channel, pluggable, parallel, fiber-optic QSFP DD PSM8 transceiver designed for 2×100 Gigabit Ethernet and Infiniband DDR/EDR applications. This high-performance module integrates eight data lanes in each direction with 208 Gbps bandwidth, with each lane operating at 26Gbps up to 10km over G.652 single-mode fiber. The modules operate over single-mode fiber systems using a nominal wavelength of 1310nm, featuring a 76-contact edge type electrical connector and a 16-fiber MTP (MPO) optical connector.

Incorporating Hilink Technologies' proven circuit and optical technology, this transceiver provides reliable long life, high performance, and consistent service for demanding data communication and interconnect applications.

Key Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if required
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16 (APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

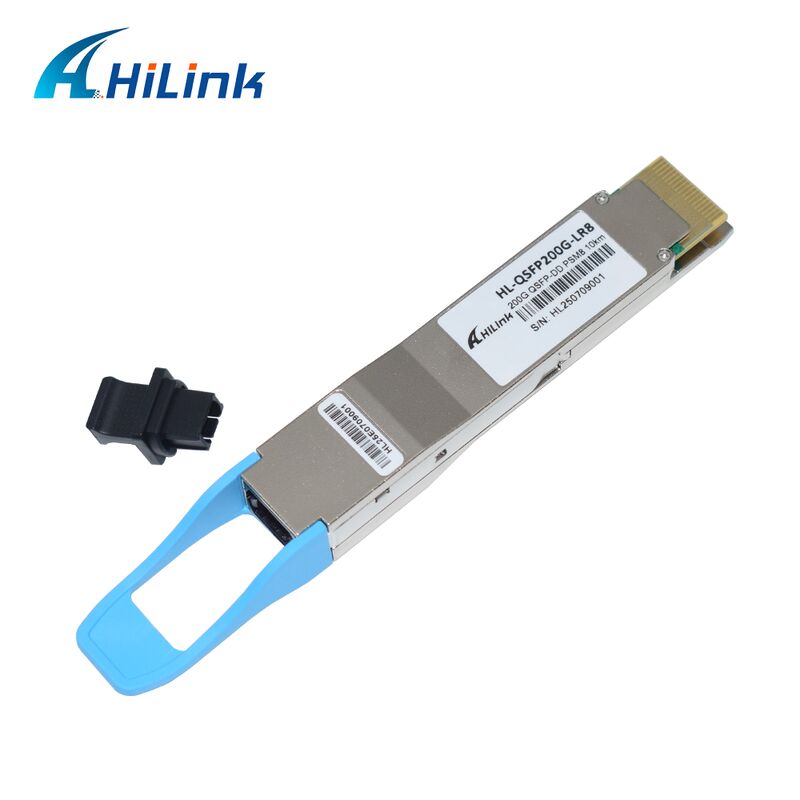

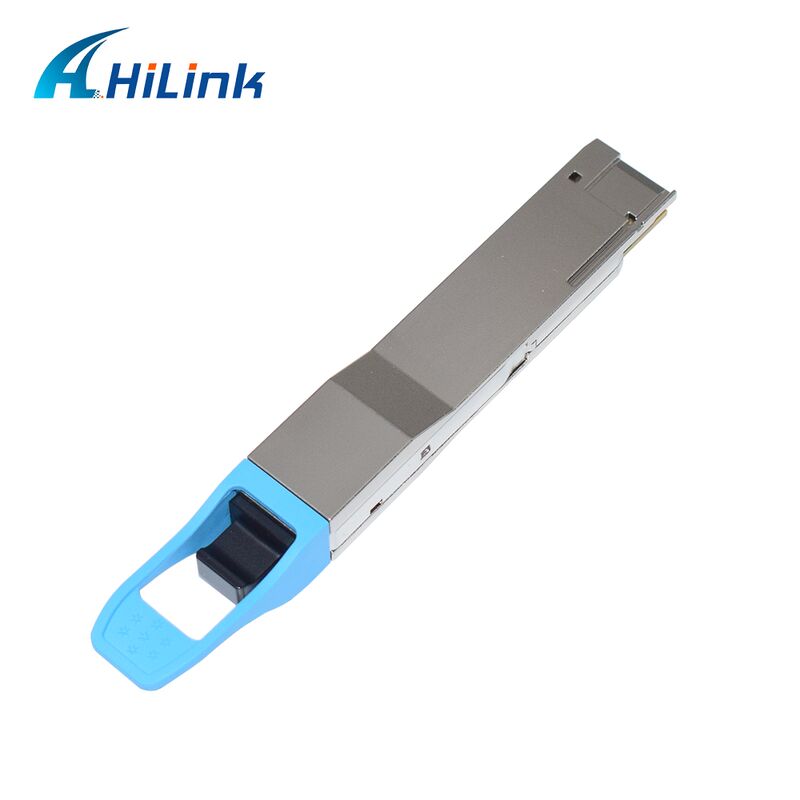

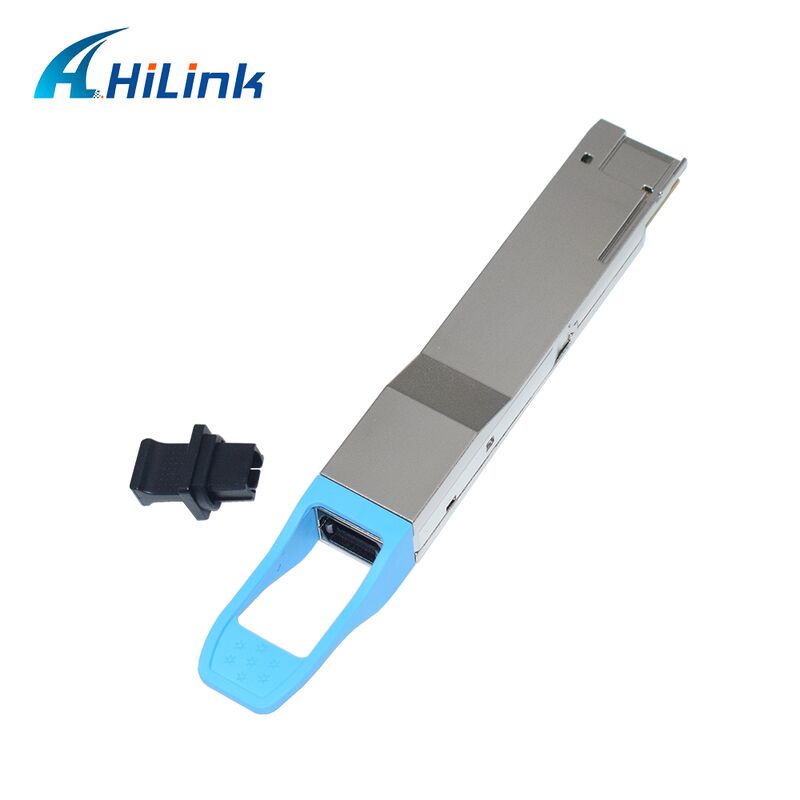

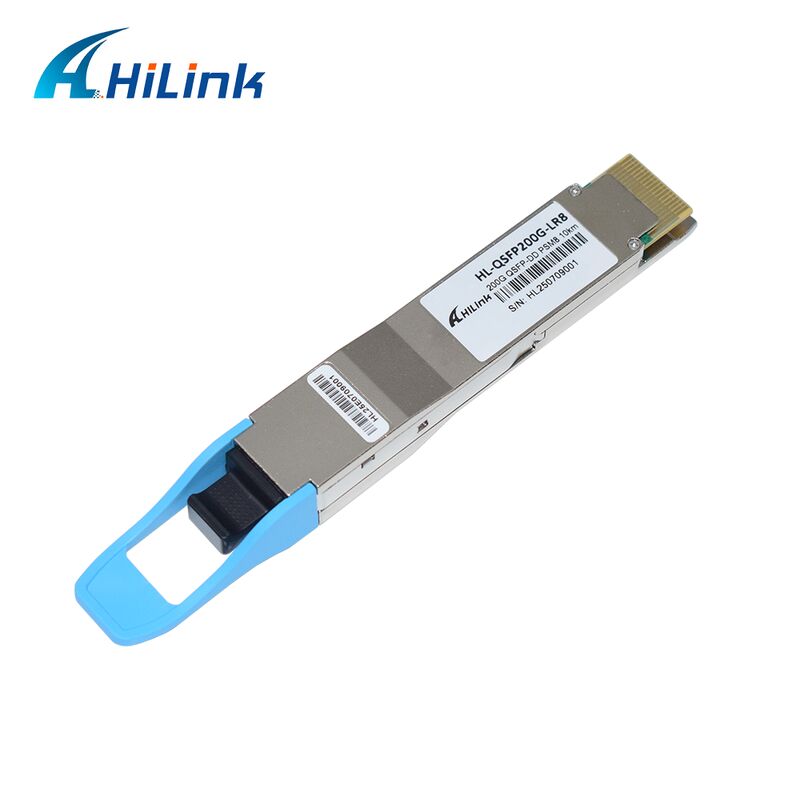

Product Images
